Production Monitoring Dashboard: What Effective Shop Floor Displays Show (and What Most Get Wrong)

A production monitoring dashboard is the visual interface between your factory’s real-time performance data and the people who need to act on it. Done right, a production monitoring dashboard makes every operator and supervisor instantly aware of whether their line is on track, what is causing any deviation from plan, and what action is needed. Done wrong — and most production dashboards are done wrong — it displays numbers that nobody looks at, metrics that nobody understands, and data that arrives too late to be actionable.

This guide defines what an effective production monitoring dashboard must show, the most common design failures that make shop floor displays useless, and how TeepTrak’s layered dashboard architecture delivers actionable visibility to every level of the production organisation.

The 6 Principles of an Effective Production Monitoring Dashboard

Principle 1: Live data, not historical data. A dashboard showing yesterday’s OEE is a report. A dashboard showing OEE from 5 seconds ago is a monitoring tool. The distinction is not semantic — it determines whether supervisors can intervene during the shift or only analyse after it. Every production monitoring dashboard should display data with latency measured in seconds, not minutes or hours.

Principle 2: Actionable signal, not information overload. The fastest way to make a dashboard useless is to put 20 metrics on it. Operators and supervisors on the shop floor need to read a dashboard in under 3 seconds from 5 metres away. The dominant signal — are we on track or not? — must be instantly readable through colour, size and position. Green is good. Red requires action. No mental arithmetic required.

Principle 3: Context, not just numbers. “OEE: 71%” is a number. “OEE: 71% — Target: 82% — 94 units behind plan — 2h 15min remaining” is actionable context. Every OEE figure on a production monitoring dashboard must be presented alongside its target, its deviation from plan in production units, and a time reference. Without context, numbers are decoration.

Principle 4: Cause visibility, not just effect visibility. Knowing OEE is low tells you there is a problem. Knowing OEE is low because the infeed conveyor generated 27 micro-stoppages in the last 90 minutes tells you what to fix. An effective production monitoring dashboard surfaces the dominant cause of performance deviation automatically — not just the deviation itself. JEMBA AI in TeepTrak generates this root cause context continuously.

Principle 5: Right information for the right audience. An operator needs to see their machine’s OEE and declare stoppage reasons quickly. A shift supervisor needs to see all 12 lines simultaneously. A production manager needs yesterday’s shift comparison and the loss Pareto. An industrial director needs cross-site benchmarks. One dashboard design cannot serve all four audiences. TeepTrak provides separate, purpose-built dashboard views for each role.

Principle 6: Visible on the shop floor, not just in the office. A production monitoring dashboard that lives on a manager’s PC and is inaccessible to the operators who can actually prevent the next micro-stoppage has zero operational value. Shop floor TV screens displaying live OEE at every line — visible to every operator on every shift — are the single highest-impact implementation decision for production monitoring dashboards.

Production Monitoring Dashboard Design: The 5 Audience Views

View 1 — Operator (Field V4 Industrial Tablet)

The operator’s dashboard is optimised for speed of interaction and clarity of information at a glance. It shows: current shift OEE (large, colour-coded vs target), plan vs actual production count, active stoppage timer (if machine is stopped), and a one-touch stop reason declaration interface. The operator should be able to read their performance status and declare a stoppage reason in under 15 seconds. TeepTrak’s Field V4 tablet is designed exclusively for this use case — industrial-grade hardware, simplified interface, full French/English/German/Spanish/Dutch/Chinese language support.

View 2 — Shift Supervisor (Shop Floor TV + Smartphone)

The supervisor’s dashboard shows all lines simultaneously — typically 4 to 20 lines on a single screen — with colour-coded OEE vs target, active stoppages, units behind plan and the most recent JEMBA AI alert for each line. The supervisor should be able to walk the floor, glance at any screen and immediately know which lines require attention. TeepTrak’s supervisor dashboard is configurable for any screen size and updates every second.

View 3 — Production Manager (Web Dashboard + Daily Digest)

The production manager’s dashboard provides shift-level granularity: OEE by line by shift, comparison vs prior period, loss category Pareto by line, changeover performance vs standard, and improvement programme KPI tracking. TeepTrak’s management dashboard is accessible on any web browser and includes configurable daily email digests with the previous day’s performance summary.

View 4 — Plant Director (Weekly Dashboard + Report)

The plant director’s view shows site-level OEE trends, performance vs annual target, top improvement actions and their measured impact, and maintenance programme effectiveness indicators. TeepTrak generates automated weekly and monthly reports for plant directors with configurable KPI sets.

View 5 — Group Industrial Director (MoniTrak Multi-Site)

MoniTrak provides a real-time cross-site OEE benchmark dashboard for manufacturing groups — showing every facility’s OEE simultaneously, ranked against group average, with best-practice identification and performance gap quantification. Industrial directors use MoniTrak to drive group-level improvement programmes and replicate high-OEE practices from best-performing sites to the rest of the group.

Digital Production Monitoring Board vs Traditional Andon Board

Traditional Andon boards display simple status signals — green (running), yellow (attention needed), red (stopped) — using physical lights. Digital production monitoring boards replace this with software-driven displays that show quantified OEE data, loss category breakdowns, JEMBA AI root cause analysis and plan vs actual production counts — all updating automatically from live machine data. The digital production monitoring board captures far more operational intelligence than a traditional Andon system while being easier to maintain and configure.

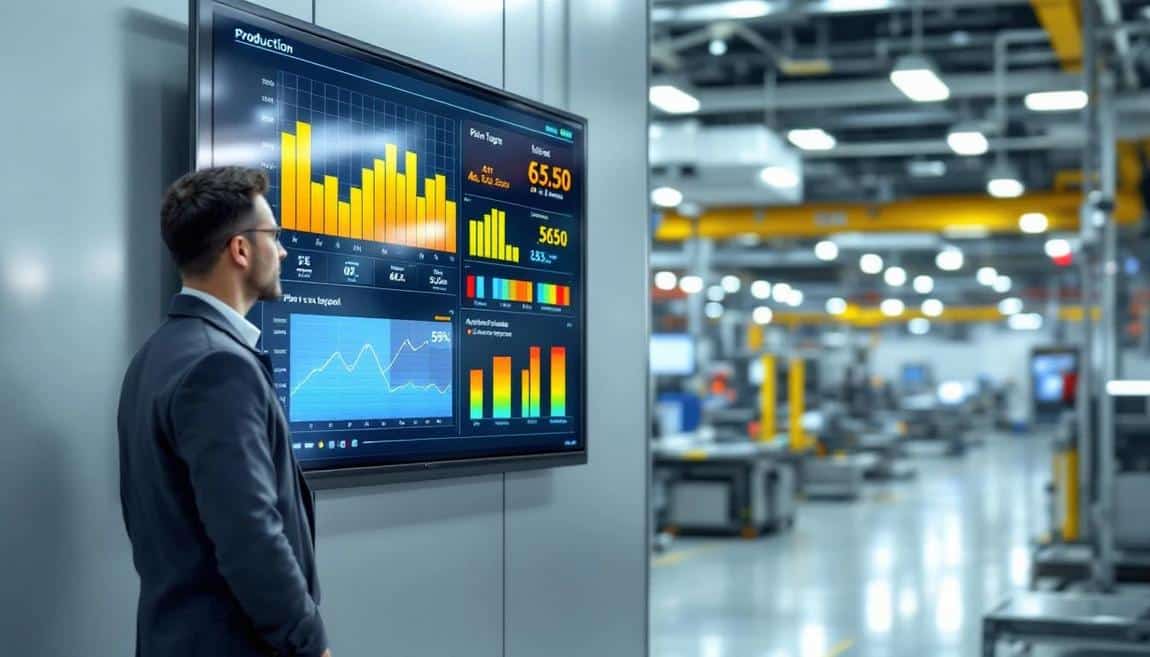

TeepTrak’s shop floor display functions as a digital production monitoring board — configurable to show any combination of OEE metrics, plan vs actual, active stoppages and JEMBA AI alerts on any TV screen or industrial monitor with an internet connection.

FAQ

What should a production monitoring dashboard show?

An effective production monitoring dashboard shows: live OEE vs target (colour-coded, updating every second), plan vs actual production count in units and time, current machine stoppage status and duration, loss category Pareto for the current shift, JEMBA AI root cause alert for the dominant loss, and trend vs prior period. Each audience level — operator, supervisor, manager, director — requires a different dashboard view optimised for their decision-making context.

What is a digital production monitoring board?

A digital production monitoring board is a software-driven shop floor display that shows real-time OEE, plan vs actual production and loss category data on a TV or industrial monitor. It replaces traditional Andon lights with quantified performance data — displaying exactly how far behind plan a line is, what is causing the deviation, and how long the current stoppage has lasted. TeepTrak’s shop floor display functions as a digital production monitoring board on any internet-connected screen.

How is a production monitoring dashboard different from a report?

A production monitoring dashboard shows live data during the shift — enabling real-time intervention. A report shows historical data after the shift — enabling analysis and planning. An effective production monitoring system provides both: a live dashboard for operational decisions and historical reports for improvement planning. TeepTrak’s dashboard updates every second from live machine data; historical reports are generated automatically at shift, daily, weekly and monthly intervals.

Can a production monitoring dashboard display on shop floor TV screens?

Yes. TeepTrak’s production monitoring dashboard is designed for display on any screen — factory TV monitors, industrial displays, tablets, smartphones and PC browsers — without additional software installation. The shop floor TV view shows all lines simultaneously with colour-coded OEE vs target, active stoppages and JEMBA AI alerts. Any browser-enabled screen with internet access can display a live TeepTrak production monitoring dashboard.
