OEE Dashboard Software: What a Real-Time Production Dashboard Should Show (and What Most Miss)

An OEE dashboard is not a report. A report describes what happened. A dashboard — a real OEE dashboard — shows what is happening now, on every line, in a format that allows operators and supervisors to act during the shift rather than the morning after. Most OEE dashboard software looks impressive in a demo but fails on the shop floor because it was designed by software engineers for screens, not by production managers for action. This guide defines what an effective real-time OEE dashboard must show, the common design failures that make dashboards useless in practice, and what the best platforms deliver.

The 7 Elements Every Real-Time OEE Dashboard Must Show

1. Current shift OEE — live, updating every second. Not the OEE from this morning or yesterday. The OEE right now, as the shift progresses. A supervisor walking the floor should be able to glance at any screen and instantly know whether each line is on track or falling behind. This requires machine data capture at second-level precision, not end-of-shift manual entry.

2. OEE vs shift target — in units of production, not just percentage. “OEE 72%” tells a supervisor the line is underperforming. “147 parts behind plan” tells them exactly how much catch-up is needed and whether it is possible before end of shift. The best OEE dashboards translate percentage into units and minutes — the language of production.

3. Real-time breakdown of availability, performance and quality. The three OEE components must be visible simultaneously. A supervisor who sees OEE dropping can immediately identify whether it is a stoppage problem (availability), a speed problem (performance) or a quality problem — and call the right person to the line.

4. Current stoppage status — what is stopped, for how long and why. If a machine is stopped right now, the dashboard must show it. How long has it been stopped? What was the operator’s declared reason? Is maintenance aware? This real-time stoppage visibility is the single most valuable feature for shift supervisors — and the one most often missing from vendor demos that show only historical data.

5. Pareto of losses for the current shift. Which loss category has cost the most time this shift? Changeover, minor stoppages, breakdowns, quality rejects, startup losses? The Pareto view tells the supervisor where to focus attention for the remainder of the shift and what to brief the incoming team on at handover.

6. Trend vs same shift last week and same shift yesterday. Context matters. An OEE of 68% at 2pm is either a problem (if it was 78% yesterday) or consistent with normal performance. The best OEE dashboards show trend context automatically, without requiring the supervisor to pull a separate report.

7. JEMBA AI root cause alert — automated, not manual. When OEE falls below target, the best OEE dashboard software surfaces the dominant root cause automatically. TeepTrak’s JEMBA AI analyses loss patterns across shifts, products and machines and sends a targeted alert — “Line 4: 43% of losses this shift are minor stoppages on the infeed conveyor — 18 events since 14:15” — rather than requiring the supervisor to analyse the data themselves.

Dashboard Views by Audience Level

The 4 Most Common OEE Dashboard Failures

1. End-of-shift data only. A dashboard that shows yesterday’s OEE is a report, not a dashboard. If the data is not live during the shift, the dashboard cannot drive real-time decisions. This is the most common failure in OEE platforms built on manual data entry or batch data uploads.

2. Percentage without context. Displaying “OEE: 71%” without showing the target, the trend and the loss breakdown gives operators and supervisors a number they cannot act on. Every OEE number needs context: vs target, vs yesterday, vs the same shift last week.

3. Too much information, no priority signal. Dashboards that display 20 metrics simultaneously train operators to ignore all of them. The best OEE dashboards use visual hierarchy — colour coding, size and position — to make the critical signal (we are falling behind / a machine is stopped) impossible to miss.

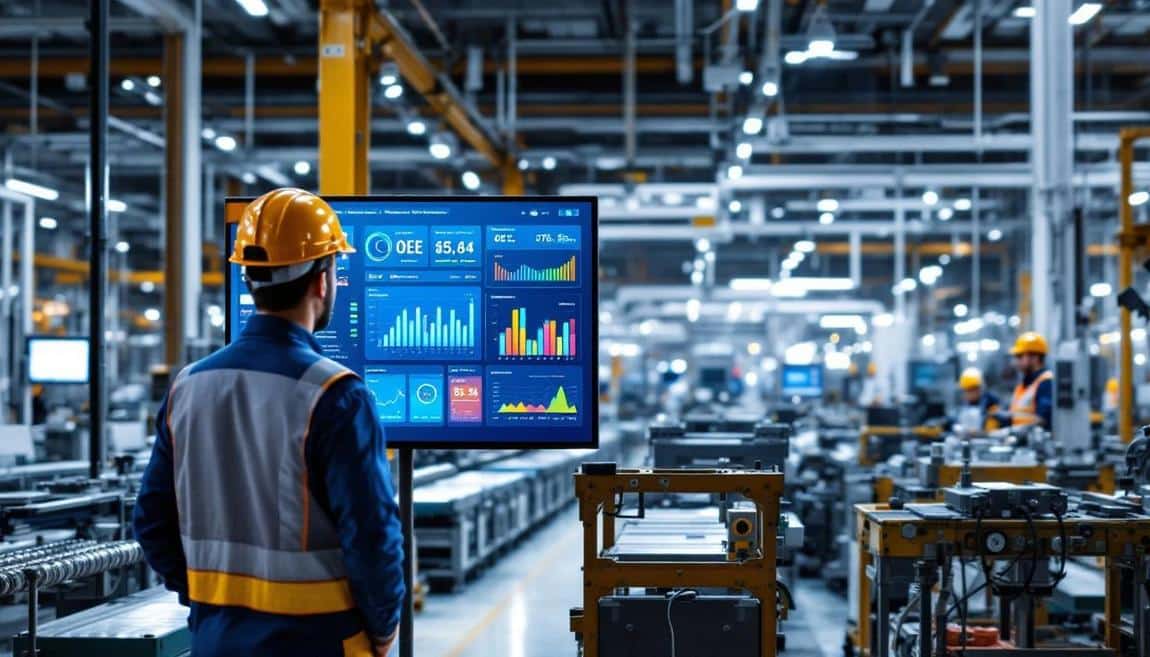

4. Management-only visibility. OEE dashboards that are only accessible to managers — on office computers, behind login screens — provide no value to the operators who can actually prevent the next micro-stoppage. The most impactful OEE deployments put live dashboards on shop floor TV screens at every line, visible to every operator on every shift.

TeepTrak OEE Dashboard: What It Delivers

TeepTrak provides configurable dashboards for every audience level: Field V4 tablets at each machine for operator interaction, shop floor TV displays showing all-line OEE in real time, web dashboards for supervisors and managers accessible on any device, and MoniTrak for multi-site cross-plant benchmarking. JEMBA AI generates automated root cause alerts when OEE falls below target — telling the supervisor not just that performance is down but specifically which loss category is dominant and where to focus.

FAQ

What should an OEE dashboard show?

An effective OEE dashboard should show: current shift OEE vs target (in % and units), real-time breakdown of availability, performance and quality, current machine stoppage status and duration, Pareto of loss categories for the current shift, trend vs prior period, and automated root cause alerts. The operator-facing view should update every second; management views can aggregate to shift or daily level.

What is the difference between an OEE dashboard and an OEE report?

An OEE dashboard shows live data during the shift — enabling supervisors and operators to act before the losses accumulate. An OEE report shows historical data after the shift — enabling analysis and planning. Effective OEE software provides both: a real-time dashboard for operational decisions and historical reports for improvement planning. Most platforms offer only reporting; real-time dashboards require second-level machine data capture.

Can OEE dashboard software display on shop floor screens?

Yes. TeepTrak’s dashboards are designed for display on any screen — industrial TV monitors at the line, tablets, smartphones and PC browsers — without additional configuration. The shop floor TV view shows all lines simultaneously with colour-coded OEE vs target, current stoppages and shift Pareto. Any browser-enabled screen with an internet connection can display a live TeepTrak dashboard.

Does OEE dashboard software need to be installed on every computer?

No. Cloud-based OEE dashboard software like TeepTrak is accessible via any web browser — no installation required on any device. The Field V4 industrial tablets at the machines are the only dedicated hardware; all management dashboards are browser-based and accessible from any PC, tablet or smartphone with internet access.
